PyPSA: Modelling Capacity Expansion Scenarios#

Individual learning outcomes#

  • Interpret the results from a PyPSA model, understanding the difference between model parameters and variables (inputs and results)

  • See what insights can be obtained from the model, and how assumptions and data quality affect the results

  • Use exploratory and normative scenarios approaches to structure a modelling analysis

Note

Also in this tutorial, you might want to refer to the PyPSA documentation for more details: https://docs.pypsa.org.

Mathematical representation of capacity expansion planning#

Review the problem formulation of the power system model. Below you can find an adapted version where the capacity limits have been promoted to decision variables with corresponding terms in the objective function and new constraints for their expansion limits (e.g. wind and solar potentials). This is known as capacity expansion problem.

\[\begin{equation*} \min_{g,e,f,G,E,F} \quad \sum_{i,s,t} w_t o_{s} g_{i,s,t} + \sum_{i,s} c_sG_{i,s} + c_{r,\text{dis/charge}}G_{i,r, \text{dis/charge}} + c_{r}E_{i,r} + c_\ell F_{\ell} \end{equation*}\]

such that

\[\begin{align*} d_{i,t} &= \sum_s g_{i,s,t} - \sum_\ell K_{i\ell} f_{\ell,t} & \text{energy balance} \\ 0 &\leq g_{i,s,t} \leq \hat{g}_{i,s,t} G_{i,s} & \text{generator limits}\\ 0 & \leq g_{i,r,t,\text{dis/charge}} \leq G_{i,r,\text{dis/charge}}& \text{storage dis/charge limits} \\ 0 & \leq e_{i,r,t} \leq E_{r} & \text{storage energy limits} \\ e_{i,r,t} &= \eta^0_{i,r,t} e_{i,r,t-1} + \eta^1_{r}g_{i,r,t,\text{charge}} - \frac{1}{\eta^2_{r}} g_{i,r,t,\text{discharge}} & \text{storage consistency} \\ -F_\ell &\leq f_{\ell,t} \leq F_\ell & \text{line limits} \\ 0 &= \sum_\ell C_{\ell c} x_\ell f_{\ell,t} & \text{KVL} \\ \underline{G}_{i,s} & \leq G_{i,s} \leq \overline{G}_{i,s} & \text{generator capacity expansion limits} \\ \underline{G}_{i,r, \text{dis/charge}} & \leq G_{i,r, \text{dis/charge}} \leq \overline{G}_{i,r, \text{dis/charge}} & \text{storage power capacity expansion limits} \\ \underline{E}_{i,r} & \leq E_{i,r} \leq \overline{E}_{i,r} & \text{storage energy expansion limits} \\ \underline{F}_{\ell} & \leq F_{\ell} \leq \overline{F}_{\ell} & \text{line capacity expansion limits} \end{align*}\]

New decision variables for capacity expansion planning:

  • \(G_{i,s}\) is the generator capacity at bus \(i\), technology \(s\),

  • \(F_{\ell}\) is the transmission capacity of line \(\ell\),

  • \(G_{i,r,\text{dis-/charge}}\) denotes the charge and discharge capacities of storage unit \(r\) at bus \(i\),

  • \(E_{i,r}\) is the energy capacity of storage \(r\) at bus \(i\) and time step \(t\).

New parameters for capacity expansion planning:

  • \(c_{\star}\) is the capital cost of technology \(\star\) at bus \(i\)

  • \(w_t\) is the weighting of time step \(t\) (e.g. number of hours it represents)

  • \(\underline{G}_\star, \underline{F}_\star, \underline{E}_\star\) are the minimum capacities per technology and location/connection.

  • \(\underline{G}_\star, \underline{F}_\star, \underline{E}_\star\) are the maximum capacities per technology and location.

Note

For a full reference to the optimisation problem description, see https://docs.pypsa.org/latest/user-guide/optimization/overview/

Note

If you have not yet set up Python on your computer, you can execute this tutorial in your browser via Google Colab. Download the .ipynb file using the download button on the top right corner and import it in Google Colab.

Then install the following packages by executing the following command in a Jupyter cell at the top of the notebook.

!pip install pypsa pandas matplotlib plotly"<6"

First, we need a few packages for this tutorial:

import pypsa
import pandas as pd

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[1], line 1
----> 1 import pypsa
      2 import pandas as pd

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/pypsa/__init__.py:21
     13 __copyright__ = (
     14     "Copyright 2015-2025 PyPSA Developers, see https://docs.pypsa.org/latest/contributing/contributors.html, "
     15     "MIT License"
     16 )
     19 from typing import NoReturn
---> 21 from pypsa import (
     22     clustering,
     23     common,
     24     components,
     25     costs,
     26     descriptors,
     27     examples,
     28     geo,
     29     optimization,
     30     plot,
     31     statistics,
     32 )
     33 from pypsa._options import (
     34     option_context,
     35     options,
     36 )
     37 from pypsa.collection import NetworkCollection

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/pypsa/examples.py:19
     16 from platformdirs import user_cache_dir
     18 from pypsa._options import options
---> 19 from pypsa.networks import Network
     20 from pypsa.version import __version_base__
     22 logger = logging.getLogger(__name__)

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/pypsa/networks.py:29
     25     from pathlib import Path
     27 import functools
---> 29 import linopy
     30 import numpy as np
     31 import pandas as pd

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/linopy/__init__.py:21
     19 from linopy.expressions import LinearExpression, QuadraticExpression, merge
     20 from linopy.io import read_netcdf
---> 21 from linopy.model import Model, Variable, Variables, available_solvers
     22 from linopy.objective import Objective
     23 from linopy.remote import OetcHandler, RemoteHandler

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/linopy/model.py:63
     61 from linopy.matrices import MatrixAccessor
     62 from linopy.objective import Objective
---> 63 from linopy.remote import OetcHandler, RemoteHandler
     64 from linopy.solver_capabilities import SolverFeature, solver_supports
     65 from linopy.solvers import (
     66     IO_APIS,
     67     available_solvers,
     68 )

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/linopy/remote/__init__.py:11
      1 """
      2 Remote execution handlers for linopy models.
      3
   (...)      8 - OetcHandler: Cloud-based execution via OET Cloud service
      9 """
---> 11 from linopy.remote.oetc import OetcCredentials, OetcHandler, OetcSettings
     12 from linopy.remote.ssh import RemoteHandler
     14 __all__ = [
     15     "RemoteHandler",
     16     "OetcHandler",
     17     "OetcSettings",
     18     "OetcCredentials",
     19 ]

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/linopy/remote/oetc.py:13
     10 from enum import Enum
     12 import requests
---> 13 from google.cloud import storage
     14 from google.oauth2 import service_account
     15 from requests import RequestException

File ~/miniconda3/envs/pypsa-zambia-workshops/lib/python3.13/site-packages/google/cloud/storage/__init__.py:35
      1 # Copyright 2014 Google LLC
      2 #
      3 # Licensed under the Apache License, Version 2.0 (the "License");
   (...)     12 # See the License for the specific language governing permissions and
     13 # limitations under the License.
     15 """Shortcut methods for getting set up with Google Cloud Storage.
     16
     17 You'll typically use these to get started with the API:
   (...)     31   machine).
     32 """
---> 35 from pkg_resources import get_distribution
     37 __version__ = get_distribution("google-cloud-storage").version
     39 from google.cloud.storage.batch import Batch

ModuleNotFoundError: No module named 'pkg_resources'

Technology Data Inputs#

A technology database (PyPSA/technology-data) is a part of PyPSA ecosystem which collects assumptions and projections for energy system technologies (such as costs, efficiencies, lifetimes, etc.) for given years, which we can load into a pandas.DataFrame. This requires some pre-processing to load (e.g. converting units, setting defaults, re-arranging dimensions).

Toolset available#

year = 2030
url = f"https://raw.githubusercontent.com/PyPSA/technology-data/master/outputs/costs_{year}.csv"
costs = pd.read_csv(url, index_col=[0, 1])

costs.loc[costs.unit.str.contains("/kW"), "value"] *= 1e3
costs.unit = costs.unit.str.replace("/kW", "/MW")

defaults = {
    "FOM": 0,
    "VOM": 0,
    "efficiency": 1,
    "fuel": 0,
    "investment": 0,
    "lifetime": 25,
    "CO2 intensity": 0,
    "discount rate": 0.07,
}
costs = costs.value.unstack().fillna(defaults)

costs.at["OCGT", "fuel"] = costs.at["gas", "fuel"]
costs.at["CCGT", "fuel"] = costs.at["gas", "fuel"]
costs.at["OCGT", "CO2 intensity"] = costs.at["gas", "CO2 intensity"]
costs.at["CCGT", "CO2 intensity"] = costs.at["gas", "CO2 intensity"]

Let’s also import a small utility function that calculates the annuity to annualise investment costs. The formula is

\[ a(r, n) = \frac{r}{1-(1+r)^{-n}} \]

where \(r\) is the discount rate and \(n\) is the lifetime. If \(r=0\), the annuity simplifies to \(a(0,n) = \frac{1}{n}\). If \(n=\infty\), the annuity simplifies to \(a(r, \infty) = r\).

# from pypsa.costs import annuity
def annuity(t: float | pd.Series, r: float | pd.Series) -> float | pd.Series:
    """
    Calculate the annuity factor for an asset with lifetime t years and.

    discount rate of r, e.g. annuity(20, 0.05) * 20 = 1.6

    parameters
    ----------
    t : int or pd.Series
        Lifetime of the asset in years.
    r : float or pd.Series
        Discount rate (e.g. 0.05 for 5%).

    Returns
    -------
    float or pd.Series
        Annuity factor, i.e. the ratio of fixed annualized cost to initial investment.
    """

    if isinstance(r, pd.Series):
        return pd.Series(1 / t, index=r.index).where(
            r == 0, r / (1.0 - 1.0 / (1.0 + r) ** t)
        )
    elif r > 0:
        return r / (1.0 - 1.0 / (1.0 + r) ** t)
    else:
        return 1 / t

annuity(t=40, r=0.07)

0.07500913887361031

Practical implications#

Based on this, we can calculate costs in PyPSA.

The short-term marginal generation costs (STMGC, €/MWh) are named marginal_cost and calculated as follows:

costs["marginal_cost"] = costs["VOM"] + costs["fuel"] / costs["efficiency"]

The annualised investment costs (capital_cost in PyPSA terms, €/MW/a) are calculated using annuity

annuity_factor = annuity(costs["discount rate"], costs["lifetime"])

Emissions data#

carrier_names = ["coal", "gas", "oil"]

carriers_emissions_list = [
    costs.at[c, "CO2 intensity"] if c in costs.index else 0 for c in carrier_names
]

carriers_emissions_dict = dict(zip(carrier_names, carriers_emissions_list))

carriers_emissions_dict["coal"]

0.3361

Loading time series data#

We are also going to need some time series for hydro, solar and load. For that, we are using some outputs of a current default dispatch run of PyPSA-Zambia model for year 2023.

ts_year = pd.read_csv("scenarios_inputs.csv", index_col=0)

ts = ts_year[:12]

ts = ts.set_index("time")

Time-varying inputs

ts
load load_2030 solar hydro
time
2023-01-01 00:00:00 1262.772707 1641.604520 0.000000 247.852300
2023-01-01 03:00:00 1264.437106 1643.768238 0.001475 323.276012
2023-01-01 06:00:00 1339.341534 1741.143994 0.116654 246.626506
2023-01-01 09:00:00 1437.178810 1868.332453 0.323262 257.865338
2023-01-01 12:00:00 1428.652936 1857.248817 0.331891 434.256283
2023-01-01 15:00:00 1469.822059 1910.768677 0.102593 759.109358
2023-01-01 18:00:00 1545.857873 2009.615235 0.000000 817.673933
2023-01-01 21:00:00 1371.515577 1782.970251 0.000000 508.473758
2023-01-02 00:00:00 1251.017393 1626.322611 0.000000 520.137318
2023-01-02 03:00:00 1294.526533 1682.884493 0.000762 542.401940
2023-01-02 06:00:00 1403.278923 1824.262600 0.066567 477.381221
2023-01-02 09:00:00 1442.137875 1874.779237 0.170190 533.810759

Model Initialisation#

In this section, we will build a one-node model which calculates the cost of meeting a national electricity demand. This simplified representation follows the ideas sketched in model.energy which explores opportunities to cover the electricity demand from renewable sources for different regions of the world.

We improve from model.energy by including an electricity demand profile rather than a constant electricity demand, and accounting for the existing generation and possible delays in generation deployment.

For building the model, we start again by initialising an empty network.

n = pypsa.Network()

Then, we add all the technologies we are going to include as carriers.

n.add(
    "Carrier",
    "coal",
    color="grey",
    nice_name="Coal",
    co2_emissions=carriers_emissions_dict["coal"],
)

carriers = [
    "hydro",
    "solar",
    "biomass",
    "electricity",
]
colors=[
    "dodgerblue",
    "gold",
    "forestgreen",
    "indianred",
]
nice_names=[
    "Hydro",
    "Solar",
    "Biomass",
    "AC"
]

for i, c in enumerate(carriers):
    n.add(
        "Carrier",
        c,
        color=colors[i],
        nice_name=nice_names[i],
    )

Then, we add a single bus…

n.add("Bus", "electricity", carrier="electricity")

…and tell the pypsa.Network object n that the snapshots of the model will be taken from the time series index ts.index.

n.snapshots = ts.index

n.snapshots[:12]

Index(['2023-01-01 00:00:00', '2023-01-01 03:00:00', '2023-01-01 06:00:00',
       '2023-01-01 09:00:00', '2023-01-01 12:00:00', '2023-01-01 15:00:00',
       '2023-01-01 18:00:00', '2023-01-01 21:00:00', '2023-01-02 00:00:00',
       '2023-01-02 03:00:00', '2023-01-02 06:00:00', '2023-01-02 09:00:00'],
      dtype='object', name='snapshot')

Adding Components#

We are going to add one dispatchable generation technology to the model. This is a coal power generator:

n.add(
    "Generator",
    "coal",
    bus="electricity",
    carrier="coal",
    p_nom=1250,
    capital_cost=900,
    marginal_cost=250,
    efficiency=0.95,
    p_nom_extendable=False,
)

Next, we add the demand time series to the model.

n.add(
    "Load",
    "demand",
    bus="electricity",
    p_set=ts.load,
)

Let’s have a check whether the data was read-in correctly.

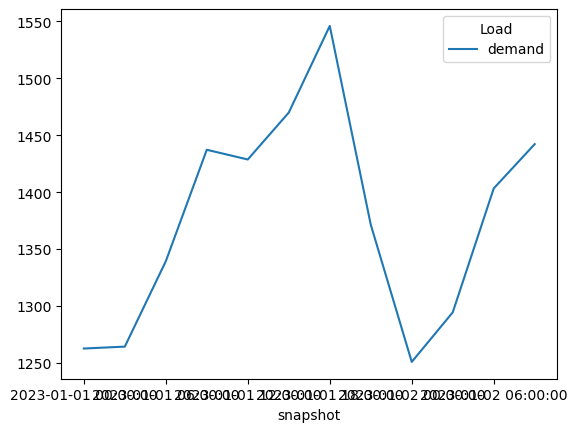

# n.loads_t.p_set.plot(labels=dict(value="Load (MW)"))
n.loads_t.p_set.plot()

<Axes: xlabel='snapshot'>
_images/3df96dde94a5999867a5e5b916ad89d84a860e78e2dad5921822a47ec72c09d0.png

Initial optimisation run#

n.optimize()

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.01s
WARNING:linopy.constants:Optimization potentially failed:
Status: warning
Termination condition: infeasible
Solution: 0 primals, 0 duals
Objective: nan
Solver model: available
Solver message: Infeasible

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP   linopy-problem-o2ofmofz has 36 rows; 12 cols; 36 nonzeros
Coefficient ranges:
  Matrix [1e+00, 1e+00]
  Cost   [2e+02, 2e+02]
  Bound  [0e+00, 0e+00]
  RHS    [1e+03, 2e+03]
Presolving model
Problem status detected on presolve: Infeasible
Model name          : linopy-problem-o2ofmofz
Model status        : Infeasible
Objective value     :  0.0000000000e+00
HiGHS run time      :          0.00
Writing the solution to /private/var/folders/qn/vpndfm21795ckkq89np1ckp40000gn/T/linopy-solve-o52cz0y7.sol

('warning', 'infeasible')

The model is infeasible which means that a solution can’t be found. The reason is lack of generation capacity which would be sufficient to cover the demand. To fix that, we will add load shedding into the model.

Load shedding trick#

n.add(
    "Carrier",
    "load shedding",
    color="red",
    nice_name="Load Shedding"
)

A fake generator is added to the model to represent load shedding. The load shedding “generator” can be expanded with zero capital cost but has very low marginal cost to make sure the model will use it only if there is no other options to cover demand:

n.add(
    "Generator",
    "load shedding",
    bus="electricity",
    carrier="load shedding",
    p_nom=0,
    capital_cost=0,
    marginal_cost=100_000,
    p_nom_extendable=True,
)

n.optimize()

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.01s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 25 primals, 61 duals
Objective: 1.55e+08
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP   linopy-problem-gu7he7nk has 61 rows; 25 cols; 85 nonzeros
Coefficient ranges:
  Matrix [1e+00, 1e+00]
  Cost   [2e+02, 1e+05]
  Bound  [0e+00, 0e+00]
  RHS    [1e+03, 2e+03]
Presolving model
0 rows, 0 cols, 0 nonzeros  0s
0 rows, 0 cols, 0 nonzeros  0s
Presolve : Reductions: rows 0(-61); columns 0(-25); elements 0(-85) - Reduced to empty
Solving the original LP from the solution after postsolve
Model name          : linopy-problem-gu7he7nk
Model status        : Optimal
Objective value     :  1.5480393270e+08
P-D objective error :  1.0588411402e-15
HiGHS run time      :          0.00
Writing the solution to /private/var/folders/qn/vpndfm21795ckkq89np1ckp40000gn/T/linopy-solve-_0ebfz3p.sol

('ok', 'optimal')

Now, the model is optimised. Let’s check how the demand is supplied by using energy_balance method:

n.statistics.energy_balance()

component  carrier        bus_carrier
Generator  Coal           AC             15000.00000
           Load Shedding  AC              1510.53933
Load       -              AC            -16510.53933
dtype: float64

To avoid load shedding, we need to add more generation capacity to the network. Let’s add hydro generation.

We use StorageUnit component to represent reservoir hydro generation

n.add(
    "StorageUnit",
    "hydro",
    bus="electricity",
    carrier="hydro",
    max_hours = 240,
    p_max_pu=1.0,  # dispatch
    p_min_pu=0.0,  # store
    inflow=ts["hydro"],
    #capital_cost=200,
    #marginal_cost=0,
    p_nom=750,
    efficiency_dispatch=0.9,
    efficiency_store=0.0,
    cyclic_state_of_charge=True
)

n.optimize()

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 73 primals, 145 duals
Objective: 2.85e+06
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP   linopy-problem-a2ngodbi has 145 rows; 73 cols; 229 nonzeros
Coefficient ranges:
  Matrix [1e+00, 1e+00]
  Cost   [2e+02, 1e+05]
  Bound  [2e+02, 8e+02]
  RHS    [2e+02, 2e+05]
Presolving model
24 rows, 60 cols, 84 nonzeros  0s
Dependent equations search running on 24 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.00s (limit = 1000.00s)
24 rows, 60 cols, 84 nonzeros  0s
Presolve : Reductions: rows 24(-121); columns 60(-13); elements 84(-145)
Solving the presolved LP
Using EKK dual simplex solver - serial
  Iteration        Objective     Infeasibilities num(sum)
          0     0.0000000000e+00 Pr: 24(22179.4) 0s
         31     2.8521402682e+06 Pr: 0(0) 0s
Solving the original LP from the solution after postsolve
Model name          : linopy-problem-a2ngodbi
Model status        : Optimal
Simplex   iterations: 31
Objective value     :  2.8521402682e+06
P-D objective error :  8.1633643841e-17
HiGHS run time      :          0.00
Writing the solution to /private/var/folders/qn/vpndfm21795ckkq89np1ckp40000gn/T/linopy-solve-0kbf1ber.sol

('ok', 'optimal')

n.statistics()
Optimal Capacity Installed Capacity Supply Withdrawal Energy Balance Transmission Capacity Factor Curtailment Capital Expenditure Operational Expenditure Revenue Market Value
Generator Coal 1250.0 1250.0 11408.56107 0.00000 11408.56107 0.0 0.760571 3591.43893 1125000.0 2.852140e+06 2.852140e+06 250.000001
Load - 0.0 0.0 0.00000 16510.53933 -16510.53933 0.0 NaN 0.00000 0.0 0.000000e+00 -4.127635e+06 NaN
StorageUnit Hydro 750.0 750.0 5101.97825 0.00000 5101.97825 0.0 0.566886 3898.02175 0.0 0.000000e+00 1.275495e+06 250.000003

To add a solar generator, we also need to supply the capacity factor to the model via the attribute p_max_pu:

n.add(
    "Generator",
    "solar",
    bus="electricity",
    carrier="solar",
    p_max_pu=ts["solar"],
    capital_cost=0,
    marginal_cost=0.001,
    efficiency=0.95,
    p_nom_extendable=True,
)

n.optimize()

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 6.08e+05
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP   linopy-problem-stp3koh8 has 170 rows; 86 cols; 274 nonzeros
Coefficient ranges:
  Matrix [8e-04, 1e+00]
  Cost   [1e-03, 1e+05]
  Bound  [2e+02, 8e+02]
  RHS    [2e+02, 2e+05]
Presolving model
24 rows, 68 cols, 92 nonzeros  0s
Dependent equations search running on 16 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.00s (limit = 1000.00s)
16 rows, 44 cols, 60 nonzeros  0s
Presolve : Reductions: rows 16(-154); columns 44(-42); elements 60(-214)
Solving the presolved LP
Using EKK dual simplex solver - serial
  Iteration        Objective     Infeasibilities num(sum)
          0     0.0000000000e+00 Ph1: 0(0) 0s
         22     6.0779986506e+05 Pr: 0(0) 0s
Solving the original LP from the solution after postsolve
Model name          : linopy-problem-stp3koh8
Model status        : Optimal
Simplex   iterations: 22
Objective value     :  6.0779986506e+05
P-D objective error :  9.5767729438e-17
HiGHS run time      :          0.00
Writing the solution to /private/var/folders/qn/vpndfm21795ckkq89np1ckp40000gn/T/linopy-solve-opbql7nn.sol

('ok', 'optimal')

n.statistics()
Optimal Capacity Installed Capacity Supply Withdrawal Energy Balance Transmission Capacity Factor Curtailment Capital Expenditure Operational Expenditure Revenue Market Value
Generator Coal 1.250000e+03 1250.0 2431.16355 0.00000 2431.16355 0.0 0.162078 1.256884e+04 1125000.0 607790.88767 6.077909e+05 250.000003
Solar 1.057885e+06 0.0 8977.39752 0.00000 8977.39752 0.0 0.000707 1.168867e+06 0.0 8.97740 8.977400e+00 0.001000
Load - 0.000000e+00 0.0 0.00000 16510.53933 -16510.53933 0.0 NaN 0.000000e+00 0.0 0.00000 -1.357802e+06 NaN
StorageUnit Hydro 7.500000e+02 750.0 5101.97825 0.00000 5101.97825 0.0 0.566886 3.898022e+03 0.0 0.00000 7.500021e+05 147.002216

Sensitivity analysis#

Sensitivity analyses constitute a core activity of energy system modelling. Below, you can find sensitivity analyses that varies the capital costs of solar:

sensitivity = {}
energy_balance = {}
for solar_costs in [200, 100, 50, 10, 5]:
    n.generators.loc["solar", "capital_cost"] = solar_costs
    n.optimize(solver_name="highs", log_to_console=False)
    sensitivity[solar_costs] = (
        pd.concat([n.statistics.capex(), n.statistics.opex()])
        .groupby("carrier")
        .sum()
        .div(1e9)
    )
    energy_balance[solar_costs] = (
        n.statistics.energy_balance()
        .drop(index="Load", level="component")
        .groupby("carrier")
        .sum()
    )

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.model:Solver options:
 - log_to_console: False
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 2.51e+06
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.model:Solver options:
 - log_to_console: False
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 2.01e+06
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.
INFO:linopy.model: Solve problem using Highs solver

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms

INFO:linopy.model:Solver options:
 - log_to_console: False
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 1.52e+06
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.model:Solver options:
 - log_to_console: False
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 9.99e+05
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms

INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.model:Solver options:
 - log_to_console: False
INFO:linopy.io: Writing time: 0.03s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 86 primals, 170 duals
Objective: 9.32e+05
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-fix-p-lower, Generator-fix-p-upper, Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-fix-p_dispatch-lower, StorageUnit-fix-p_dispatch-upper, StorageUnit-fix-p_store-lower, StorageUnit-fix-p_store-upper, StorageUnit-fix-state_of_charge-lower, StorageUnit-fix-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

Running HiGHS 1.11.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms

energy_mix_df = pd.DataFrame(energy_balance).T
energy_mix_df.index.name = "solar capital cost"

energy_mix_df
carrier Coal Hydro Solar
solar capital cost
200 6615.85858 5101.97825 4792.70249
100 4659.71514 5101.97825 6748.84594
50 3793.37116 5101.97825 7615.18991
10 3460.08374 5101.97825 7948.47734
5 3460.08374 5101.97825 7948.47734
df = pd.DataFrame(sensitivity).T
df.index.name = "solar capital cost"

df
carrier Coal Solar
solar capital cost
200 0.002779 0.000861
100 0.002290 0.000847
50 0.002073 0.000574
10 0.001990 0.000134
5 0.001990 0.000067
